Often referred to as Long Wire Balun, this device is used to match the impedance of a long wire HF antenna to a 50 ohm input impedance of a receiver.
Such impedance matching usually results in a significant signal strength increase (up to 17dB in some cases, and approximately 5dB on average), compared to the long wire antenna connected directly to the antenna input of the receiver.
|

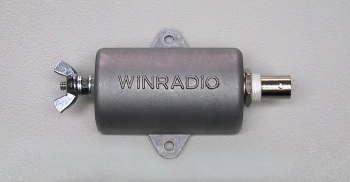

The WiNRADiO WR-LWA-0130 Long Wire Antenna Adapter is designed to work on medium and short wave bands, covering a frequency range from 0.1 to 30 MHz.
It is especially suitable for use with WiNRADiO shortwave receivers, such as the WR-G31DDC receiver.
Unlike most conventional antenna adapters, the WiNRADiO WR-LWA-0130 Long Wire Antenna Adapter
employs a dual broadband transformer technique which offers an improved performance over single-transformer devices.
Installation
|
The adapter is connected to the receiver via a BNC connector and a suitable low-loss coaxial cable.
For outdoor installation we recommend the use of Coax Seal applied over the BNC connector, for additional weather-proof protection.
|

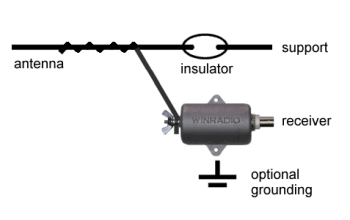

Strip the end of the antenna lead-in wire and tighten it under the winged nut. Connect the Long Wire Adapter
to the receiver using a coaxial cable with a BNC connector.
|
Technical Specifications
|
|
Type
|
Dual-transformer passive impedance adapter
|
|
Frequency range
|
100 kHz to 30 MHz
|
|
Impedance ratio
|
1:9
|
|
Connectors
|
BNC (receiver side)
M4 screw with winged nut (antenna side)
|
|
Enclosure
|
Diecast aluminium
|
|
Size
|
60 x 35 x 30 mm (2.3 x 1.4 x 1.2 in)
(excluding connectors)
|
|
Weight
|
105 grams (3.8 oz)
|
Specifications are subject to change without notice due to continuous product development and improvement.
|
Frequency coverage 0.1 to 30 MHz
